MPAN (Meter Point Administration Number)
An MPAN (Meter Point Administration Number) is a unique number to the property.
It is found on the electricity bill issued by your supplier. This is sometimes
called a Supply Number but it should not be confused by your customer reference
The full MPAN is 21 digits in length and should be printed in the format below
on a recent electricity bill.
If you wish to find out your MPAN you can call your local electricity supplier - whose
telephone number you will can see at MPAN
If you ask for their MPAS department they should be able to either tell you
the full 21 digit MPAN or arrange to send it to you.
For a detailed explanation of your MPAN see the following:
Every property has a profile class.
Profile classes are used where half -hourly metering is not installed and
provides the electricity supplier with an expectation as to how electricity
will be consumed throughout the day.
From a domestic customer viewpoint we are interested in two classes 01 and
02. Other classes that exist are 03, 04, 05, 06, 07, and 08. Where half-hourly
metering is installed (large consumers) the profile class in 00.

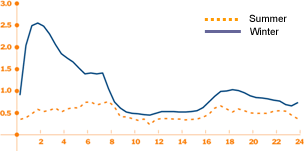

Detailed below are the profile classes used as guidance to show your likely
electricity consumption throughout the 24 hour period. You will notice that
summer and winter figures are different:
01 Domestic Unrestricted
02 Domestic Economy 7
03 Non-Domestic Unrestricted
04 Non-Domestic Economy 7
05 Non-Domestic Maximum Demand 0-20% Load Factor
06 Non-Domestic Maximum Demand 20-30% Load Factor
07 Non-Domestic Maximum Demand 30-40% Load Factor
08 Non-Domestic Maximum Demand >40% Load Factor
Meter Time Switch Code (MTC)
The Meter Time Switch Code indicates how many registers (set of meter reads
or dials) your electricity meter has and what times they will operate during
the day. The Meter Time Switch Code will show if your meter has two registers,
one which records day consumption, the other night.
Line Loss Factor (LLF)
The Line Loss Factor code stipulates the expected costs the distribution company
will charge the supplier for using the cables and network in your region. This
Line Loss Factor code will also indicate to the electricity supplier the potential
charges incurred, due to loss of energy incurred whilst getting the electricity
supplier to your meter.
The Distributor ID will identify the local Distribution Company for your electricity
supply. The Distribution company is responsible for management of the distribution
system and electricity wires which transports the electricity to your meter.
10 - Eastern Electricity
11 - East Midlands Electricity
12 - London Electricity
13 - MANWEB
14 - Midlands Electricity
15 - Northern Electricity
16 - NORWEB
17 - Scottish Hydro-Electric
18 - Scottish Power
19 - Seeboard
20 - Southern Electricity
21 - SWALEC
22 - SWEB
23 - Yorkshire Electricity
Meter Point ID
This is a unique number within the distribution area to identify the actual
This number is calculated from the Distributor ID and Meter Point ID Number
to provide a check digit that other systems can use to validate the both numbers.
